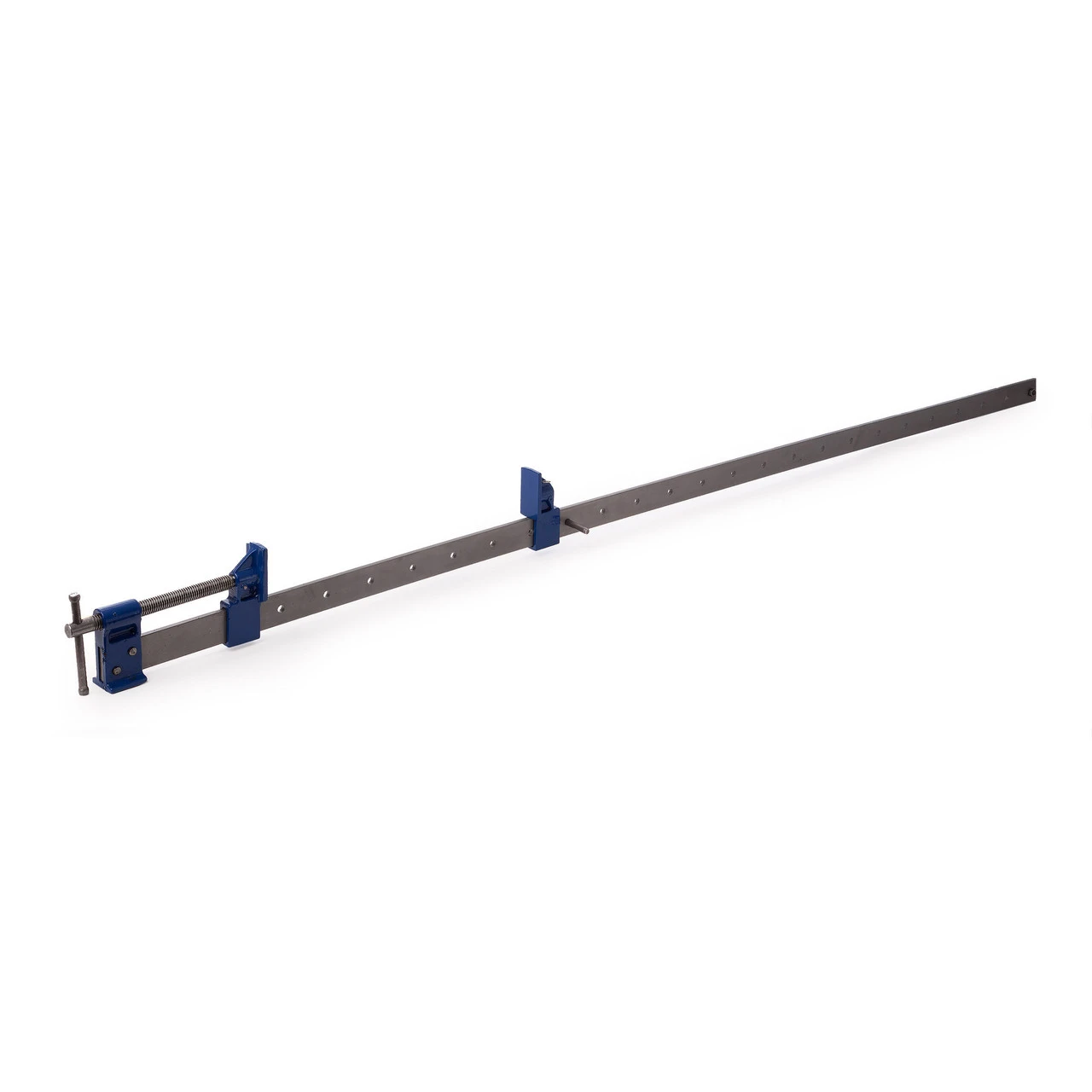

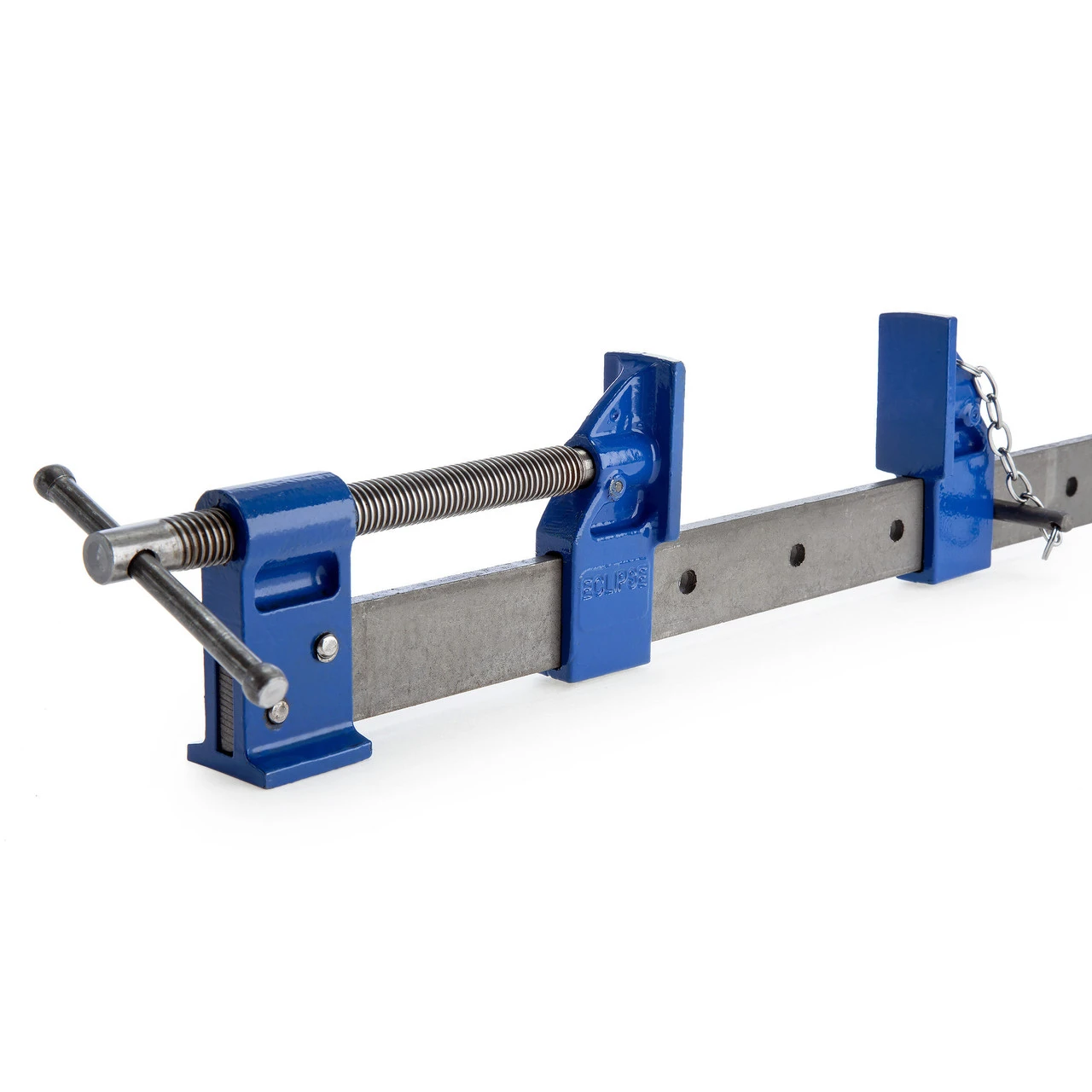

Eclipse ESC48 Sash Clamp 48in / 1220mm

The Eclipse ESC48 Sash Clamp with twin start rolled acme thread that applies pressure quickly and smoothly to the workpiece

The Eclipse ESC48 Sash Clamp has a clamping capacity of  48in / 1220mm and a bar length of  54in / 1370mm. Sash clamps have an average clamping force of 500 kg 1100 lbs. The ductile head and slide are guaranteed unbreakable, whilst the steel bar offers maximum tensile and yield strength. The slightly tapered jaws enables parallel clamping and the fast action rolled thread applies pressure quickly and smoothly to the work piece.

Features:​

• For a wide range of wood working applications including gluing of large pieces of wood and furniture
• Steel bar offers maximum tensile and yield strength and can achieve an average clamping force of up to 500kg
• The ductile head and slide are guaranteed unbreakable
• Tommy bar will bend before the clamp becomes overstressed
• Twin start rolled acme thread applies pressure quickly and smoothly to the workpiece
• Flat bottomed head and slide so that the clamp can stand without support
• The slightly tapered jaws enable perfectly parallel clamping
• Slide secured by a solid steel pin passing through one of the location holes spaced along the steel bar

Specification:

• Size: 48in

SKU: ECL-ESC48
