Norbar 11170 Model 60 Female P Type Torque Handle 19 X 12mm 8 – 60 Nm / 5 – 45 Lbf.ft

Norbar 11170 Model 60 Female P Type Torque Handle 19 x 12mm 8 – 60 Nm / 5 – 45 lbf.ft

The Norbar 11170 is a Model 60 Torque Handle with a Female 19 x 12mm end and an accuracy of ±3%. ‘P’ Type are designed for the production environment where they will be set and then dedicated to a particular application. There is no scale, the wrench must be set against a torque testing device such as Norbar’s Professional Torque Tester.

Features:

• Setting system is designed to discourage unauthorised alteration

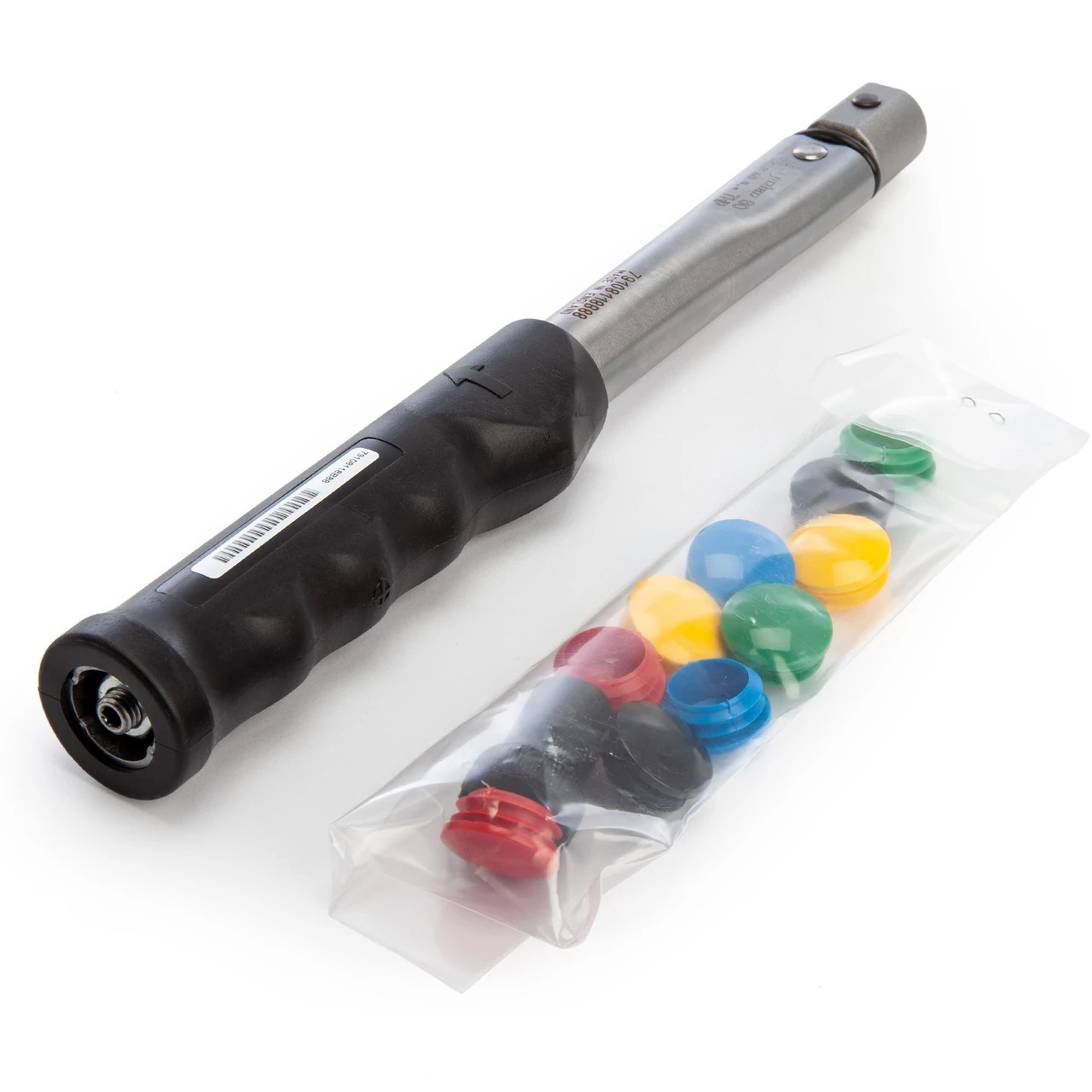

• Coloured end seals are provided to identify the wrench to a particular operator, torque setting or calibration period
• Also available with a high quality ratchet
• On request ‘P’ Type wrenches can be set, marked with the setting and certified for production line applications requiring a sealed torque setting. Only if a pre-set has been requested will the tool be supplied with a Declaration of Conformance

Specification:

• Accuracy: ±3%
• Operates between:
• 500.00 – 900.00 lbf·in
• 5.00 – 45.00 lbf·ft
• Length: 288 mm
• Torque Radius: 236.6 mm
• Weight: 0.55 Kg
• 8.00 – 60.00 N·m

SKU: NOR-11170
